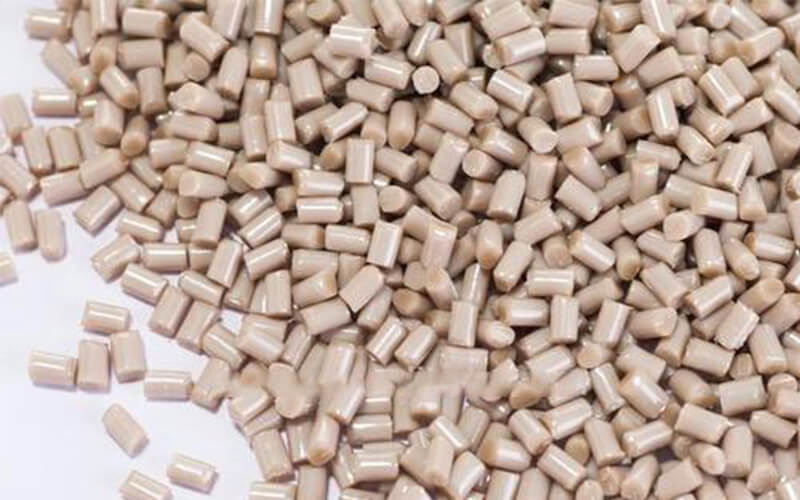

PEEK, Polyetheretherketone, is a semi-crystalline high-performance thermoplastic material with high strength and stiffness as well as high ductility. It exhibits great chemical resistance, excellent mechanical strength, good electrical insulation, dimensional stability, and exceptionally high temperature resistance. PEEK material is suitable for continuous use up to 260ºC and still retains its physical properties. It also possesses hydrolysis resistance to steam, water, and seawater at elevated temperatures. It is commonly used in aerospace, automotive, medical, high temperature electrical applications due to these properties.
- Outstanding Chemical Resistance: PEEK resin has good resistance to hydrolysis water and steam, alcohols, esters, alkaline solutions, oils, fats, and fuels…
- Good Insulation Properties: PEEK material has high volume resistivity and surface resistivity. It retains insulating properties over a wide temperature range.
- High Strength & Toughness
- Low Water Absorption
- Inherently Wear & Abrasion Resistance
semiconductor machinery components, aerospace parts, washers, bushings, bearings, seals, backup rings, syringes, endoscopes, medical implants, cervical cages, pump and valve components, vacuum wand handles, food processing machinery components…
| Item | Property | Test Method | Unit | Value |
|---|---|---|---|---|
| Physical | Density | ASTM D792 | g/cm3 | 1.31 |
| Water Absorption | ASTM D570 | % | 0.10 | |
| Hardness | ASTM D2240 | Shore D | 87.5 | |
| Mechanical | Tensile Modulus | ASTM D638 | psi | 5.0 × 105 |
| Tensile Strength | ASTM D638 | psi | 16,000 | |
| Tensile Elongation | ASTM D638 | % | 20 | |
| Flexural Modulus | ASTM D790 | psi | 6.0 × 105 | |
| Flexural Strength | ASTM D790 | psi | 25,000 | |
| Izod Impact | ASTM D256 | ft-lb/in | 1.0 | |
| Thermal | Vicat Softening Point | ASTM D648 | °C/°F | |
| Heat Deflection Temperature at 264 psi | ASTM D648 | °C/°F | 160 / 320 | |
| Coefficient of Linear Thermal Expansion | ASTM D696 | in./in./°F | 2.6 | |
| Flammability | UL94 | - | V-0 | |
| Electrical | Electrical Volume Resistivity | ASTM D257 | Ω-cm | 4.9 × 1016 |
| Dielectric Constant | ASTM D150 | 1 MHz | 3.30 | |
| Dissipation Factor | ASTM D150 | 1 MHz | 0.003 | |
| Dielectric Strength | ASTM D149 | V/mm | 20,000 | |
