PP, polypropylene, is a rigid and crystalline thermoplastic and is one of the top three widely used polymers in the industry. It has properties like durability, good dielectric strength, excellent electrical resistance, high toughness, and low friction. It also has good resistance to chemicals, stains, heat, and fatigue.
- High Tensile Strength
- Elasticity & Toughness
- Fatigue Resistance
- Good Water Resistance
- High Melting Point
- Biological Resistance
- High Resistance to Electricity

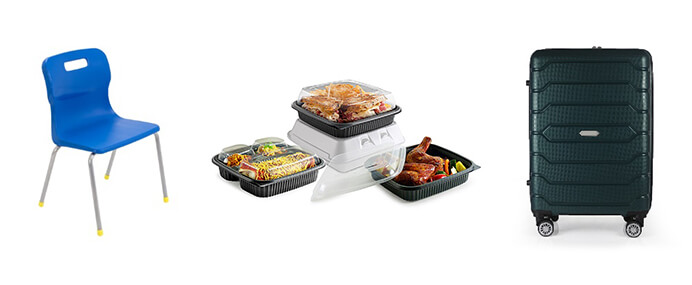

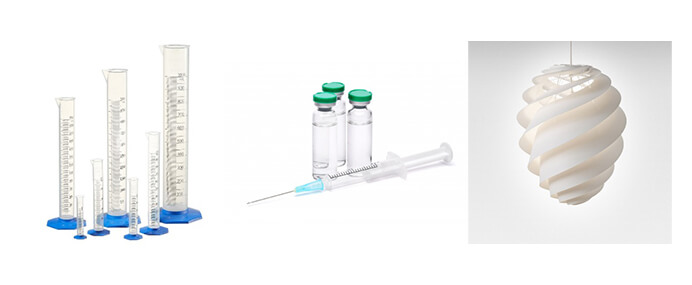

labels, food packaging, diaper tabs, closures, crates, bottles, pots, living hinges, housewares, light shades, furniture, stationery folders, appliances, luggage, toys, fibers and fabrics, lab equipment, medical vials, diagnostic devices, petri dishes, battery cases and trays, bumpers, fender liners, interior trim, instrument panels, door trims…
| Item | Property | Test Method | Unit | Value |
|---|---|---|---|---|
| Physical | Density | ASTM D792 | g/cm3 | 0.91 |
| Rockwell Hardness | ASTM D785 | - | 95 | |
| Mechanical | Tensile Modulus | ASTM D638 | psi | 2.5 × 105 |
| Tensile Strength | ASTM D638 | psi | 4,700 | |
| Flexural Modulus | ASTM D790 | psi | 2.0 × 105 | |
| Flexural Strength | ASTM D790 | psi | 6,000 | |
| Izod Impact | ASTM D256 | ft-lb/in | 1.9 | |
| Thermal | Heat Deflection Temperature at 264 psi | ASTM D648 | °C/°F | 54 / 130 |
| Heat Deflection Temperature at 66 psi | ASTM D648 | °C/°F | 107 / 225 | |
| Flammability | UL 94 | - | HB | |
| Electrical | Electrical Volume Resistivity | ASTM D257 | Ω/cm | > 1016 |
| Dielectric Constant | ASTM D150 | 1 kHz | 2.25 | |
| Dissipation Factor | ASTM D150 | 60 Hz | 0.0005 - 0.0018 | |
| Dielectric Strength | ASTM D149 | V/mm | 500 - 660 | |
